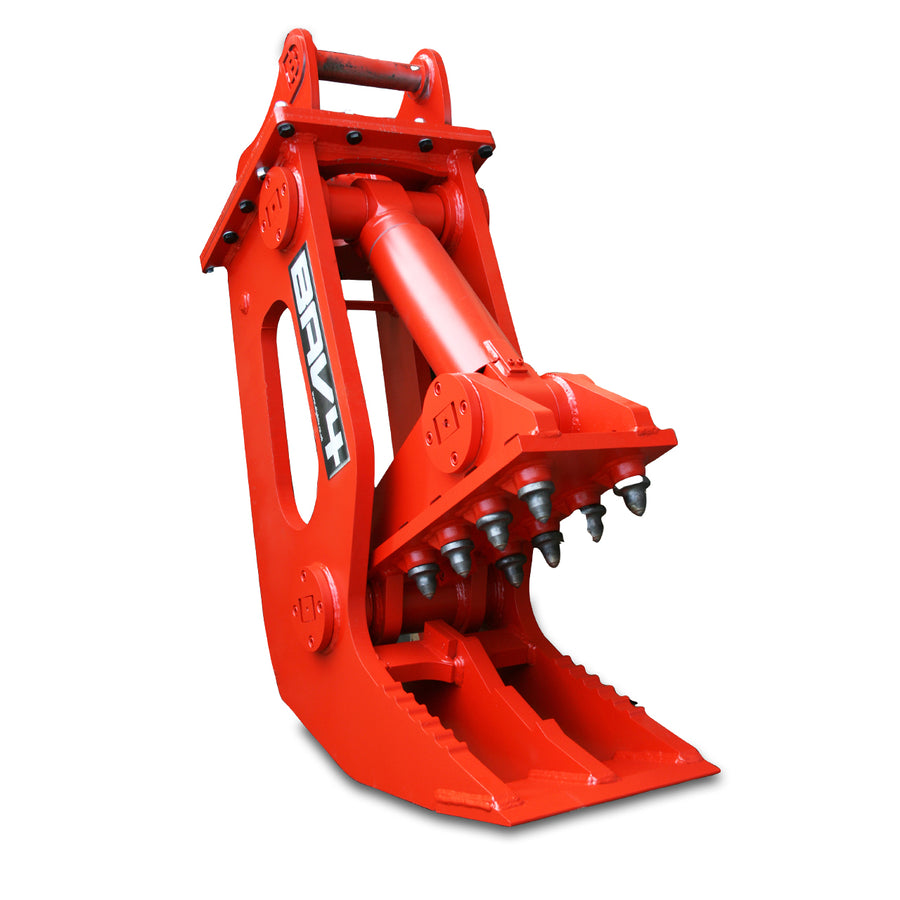

BAV4 Alligatorbrecher für Bagger 10,0-16,0t
INC. VAT €16.396,74 EUR
Dieser Bagger-Brecher/Pulverisierer kann alles. Der BAV4 kann große Materialbrocken zerkleinern, Armierungsdraht schneiden und auch eine für die Wiederverwendung vor Ort geeignete Qualität erzeugen.
Ideal für den Einsatz bei zähen, unhandlichen oder stark verstärkten Teilen, die nicht durch mobile Brechanlagen geleitet werden können.
Merkmale:
- Zähne aus Wolframkarbid
- Hardox®-Hauptplatten
- Armierungsdrahtschneider
Spezifikationen:
- Gewicht: 1000-1100kg
- Trägerbaggergröße: 10 bis 16 Tonnen
- Backenöffnung: 425 mm
- Backenlänge: 795mm
- Backenbreite: 450mm
- Hydraulikdruck: 300 bar
24 Monate Garantie auf Backe und Chassis.
Titel
INC. VAT €16.396,74 EUR
BAV4 Alligatorbrecher für Bagger 10,0-16,0t
Titel
G
e
t
t
h
e
B
A
V
4
a
d
v
a
n
t
a
g
e
01
Large jaw opening
Crush slabs over 400mm thick
02
Reduce waste volumes when removing from site. Create recycled aggregate to re-use on site.
03
Crush reinforcing mesh clean of concrete for best scrap value. Cut reinforcing wires and rods up to 25mm.
01
Large jaw opening
Crush slabs over 400mm thick
02
Reduce waste volumes when removing from site. Create recycled aggregate to re-use on site.
03
Crush reinforcing mesh clean of concrete for best scrap value. Cut reinforcing wires and rods up to 25mm.
Introducing the BAV3
Alligator Crusher
Jaw pulveriser attachment for excavators 2.5 to 9 tonnes
Minimum Carrier Excavator weight
1
0
.
0
t
o
n
n
e
s
Maximum Carrier Excavator weight
1
6
.
0
t
o
n
n
e
s
- Jaw Opening (max.)
- Jaw Width
- Weight (approx.)
- Hydraulic Pressure
- Hydraulic Flow
- 420mm
- 450mm
- 1,060kgs
- 190-300 Bar
- 90-125 l/min
BAV4 Product Features
Details that deliver the difference
Hardox® 450 Construction
Chassis, moving jaw and crush grid are all fabricated from Hardox® 450 for high wear resistance, excellent yield strength and reliable durability.
- 3 to 4 times wear resistance of mild steel
- More than 4 times stronger than mild steel
Fully Bushed Pivots
All units feature hardened steel top-hat style bushings at the main jaw pivot, in both jaw and chassis fabrications, for long service life.
The top-hat style bush not only counters radial loads during jaw rotation, but also gives a replaceable thrust face for axial loads from crushing
(sectional view, 3D CAD render)
Tungsten Carbide teeth
Custom designed tungsten carbide teeth give aggressive penetration and are also quick, cheap and simple to change.
Easy to swap out, even on site, so you can maintain maximum crushing performance and efficiency.
24 Month warranty
The Hardox® chassis and main crushing jaw are guaranteed against failure of materials or workmanship for 24 months.
Guarantee excludes normal wear and tear to teeth, crush grids and ram seals and accidental damage.
British Built
Quality materials and skilled, British fabrication and manufacture ensure reliable, durable service life.
We are a British company, with a physical location within the UK that anyone can see on Google maps. You know who you are dealing with.
We've been building excavator crusher buckets since 2010, so have plenty of experience and history in the field. Our crusher buckets get good resale values, because they are trusted to not only do the job, but also last well too.
Hardox® 450 Construction
Chassis, moving jaw and crush grid are all fabricated from Hardox® 450 for high wear resistance, excellent yield strength and reliable durability.
- 3 to 4 times wear resistance of mild steel
- More than 4 times stronger than mild steel
Fully Bushed Pivots
All units feature hardened steel top-hat style bushings at the main jaw pivot, in both jaw and chassis fabrications, for long service life.
The top-hat style bush not only counters radial loads during jaw rotation, but also gives a replaceable thrust face for axial loads from crushing
(sectional view, 3D CAD render)
Tungsten Carbide teeth
Custom designed tungsten carbide teeth give aggressive penetration and are also quick, cheap and simple to change.
Easy to swap out, even on site, so you can maintain maximum crushing performance and efficiency.
24 Month warranty
The Hardox® chassis and main crushing jaw are guaranteed against failure of materials or workmanship for 24 months.
Guarantee excludes normal wear and tear to teeth, crush grids and ram seals and accidental damage.
British Built
Quality materials and skilled, British fabrication and manufacture ensure reliable, durable service life.
We are a British company, with a physical location within the UK that anyone can see on Google maps. You know who you are dealing with.
We've been building excavator crusher buckets since 2010, so have plenty of experience and history in the field. Our crusher buckets get good resale values, because they are trusted to not only do the job, but also last well too.
BAV4

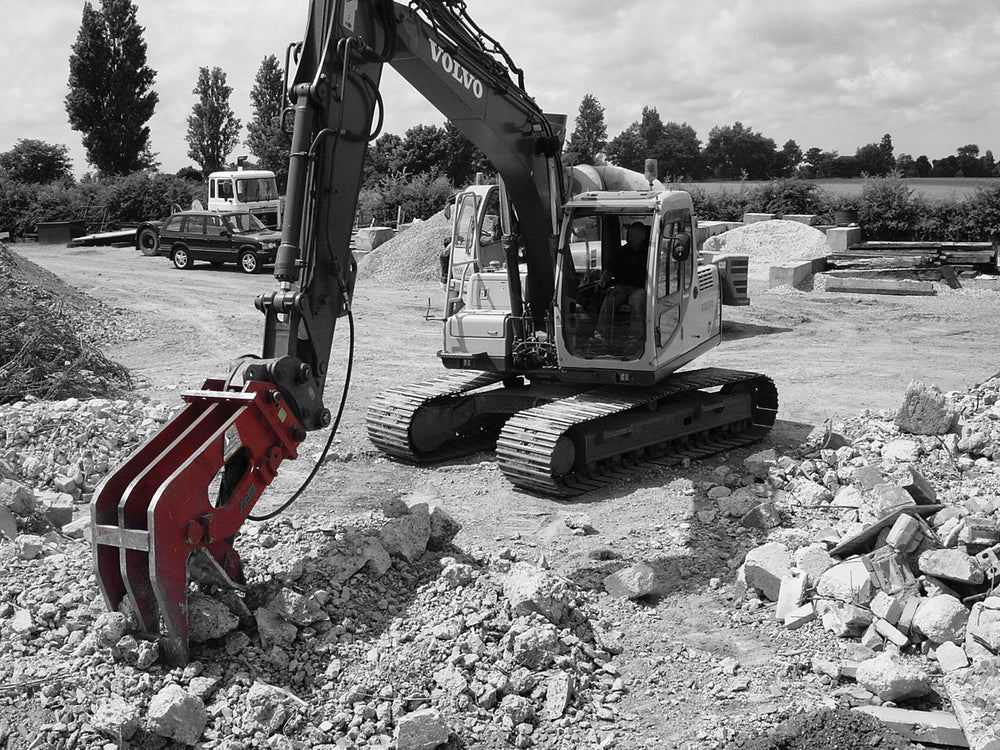

The BAV4 Alligator Crusher attachment, for 10.0 to 16.0 tonne carrier excavators. The attachment will work faster and have more power when used on larger excavators, with better auxiliary attachment hydraulics.
Even on the smallest carrier excavator, there is sufficient power for very hard concrete and also to cut reinforcing wires and rods.
Use an excavator-mounted jaw crusher pulverisor to process material that is too large or heavily reinforced for a mini mobile crusher. Watch the video below to see how.
